Dongguan Qy Hardware Mould Part Factory

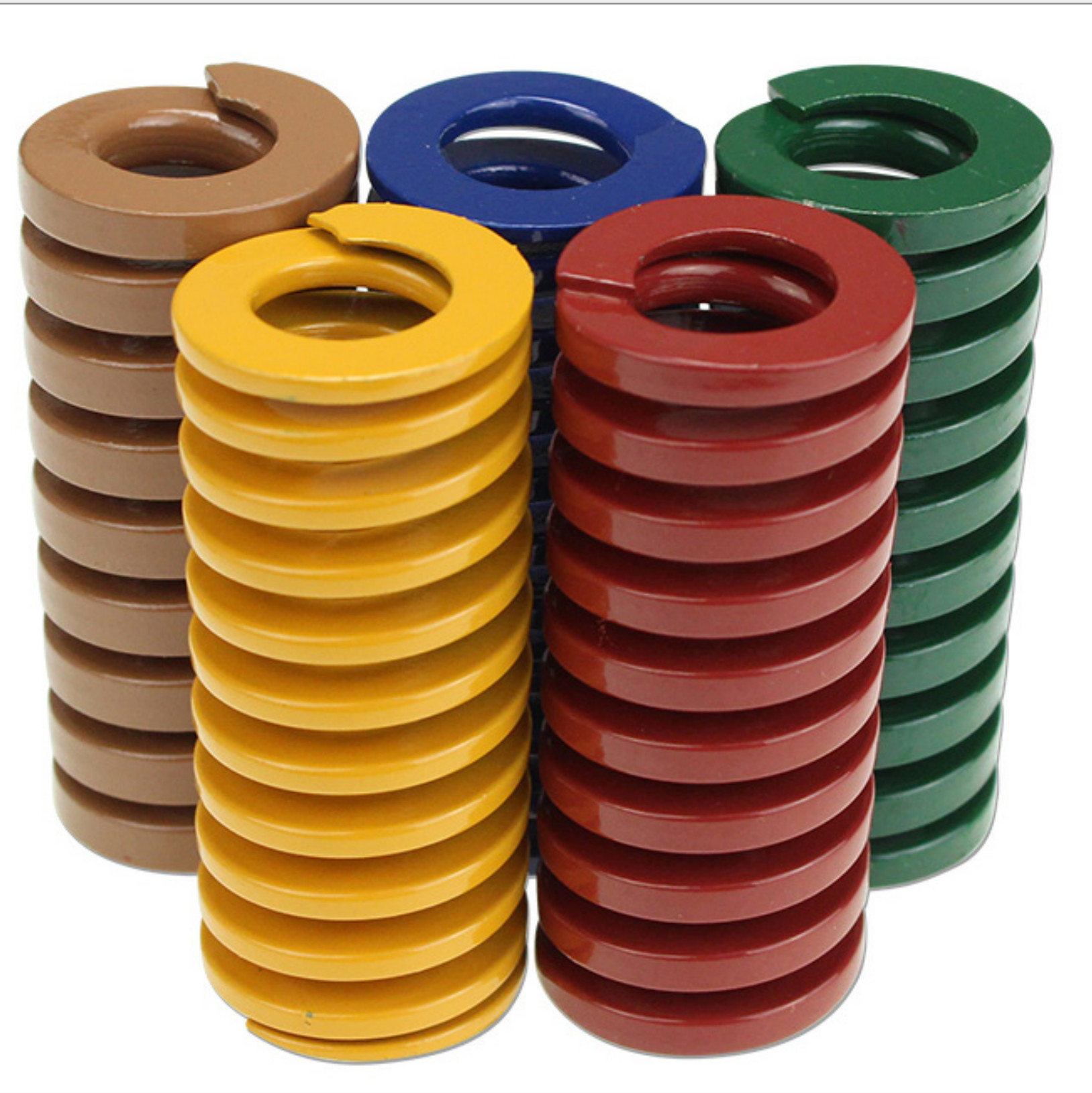

Compressing metal moulds Custom Die Springs

Product Details:
Place of Origin: China
Brand Name: QY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100
Packaging Details: Cartons and wooden cases
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000/month
  • Detail Information
  • Product Description

Detail Information

Material: Steel Fatigue Test: >60,000,000
Wire Diameter: 0.03mm-12.00mm Size: Customized Size, Customer's Requst, As Customers' Drawing
Service: Customized OEM, OEM ODM, Professional Color: Silver, Silver Toggle Latch, According To Customer, Accessories Parts
High Light:

moulds Custom Die Springs


metal moulds Die Springs


Custom Compressing metal moulds

Product Description

                                          Mould Die Spring And Customized Industrial Compressing Spring


1. The use of the mold spring

The mold spring is a flat coil spring used for punching metal molds. It can also be used in other mechanical manufacturing applications. It can be designed according to the application scenario to match.

2. Characteristics

(1) High-strength manufacturing

(2) The spring is resistant to high temperatures up to 280 degrees Celsius

(3) All springs have passed the strong pressure test

(4) Durable material after life test

(5) The spring surface is strengthened

3. Type

(1) Light and small load (TF)

(2) Light load (TL)

(3) Moderate Force (TM)

(4) Heavy Force (TH)

(5) Extremely Heavy Force (TB)

4.How to choose the right spring?

(1) 2D/3D drawing customization

(2) Provide parameters: load, spring outer diameter, spring wire diameter, number of coils, life cycle, compression, tolerance.

5. The list of spring example specifications is as follows:(Different colors with different prices).

Outer diameter Inner diameter Yellow Green Red Blue Brown
4.0+ 0.32 0.32 0.32 0.32 0.35
10× 5.0+ 0.30 0.30 0.30 0.32 0.37
12× 6.0+ 0.30 0.30 0.32 0.32 0.42
14× 7.0+ 0.30 0.30 0.32 0.32 0.42
16× 8.0+ 0.30 0.30 0.30 0.32 0.39
18× 9.0+ 0.32 0.32 0.42 0.46 0.53
20× 10.0+ 0.50 0.55 0.61 0.66 0.77
22× 11.0+ 1.61 0.72 0.77 0.88 1.05
25× 12.5+ 0.77 0.83 0.94 1.05 1.27
27× 13.5+ 0.94 1.05 1.16 1.27 1.43
30× 15.0+ 1.05 1.16 1.27 1.38 1.54
35× 17.5+ 1.38 1.38 1.54 1.65 1.93
40× 20.0+ 1.93 2.04 2.31 2.53 3.03
50× 25.0+ 3.08 3.30 3.58 4.40 8.64
60× 30.0+ 4.24 4.68 9.00




  • With more than 8 years of professional experience,
  • Our company is a leading manufacturer,
  • specilized in producing Punches,Ejector Pins and sleeves,DieButtons,Bushes,Ejector Punches,Drill Rods,
  • Ball Cages,Springs,Blocksets of many different standards


  • besides, customized services availble here.
Our Services


1,More than 8 years professional manufacture experience in this field

2. EDM (MITSUBISHI) processing part, our core of EDM processing part reflect on the dimensional accuracy(2-3um), copy accuracy and surface roughnessRa0.3), which are able to achieve the mold part demand for micro connector, mobile,auto,computer connector.


3. WDM-LS(MITSUBISHI) processing part, accuracy 0.0015-0.003mm, roughness Ra<0.5um.


4. Grinding part, special guys responsible for the equipments daily maintenance, make sure them work smoothly, Maximum the grinding accuracy <1um


5. Custom nonstandard parts, we strict follow your drawings to produce parts so it can perfect fit your machine, all the parts accuracy can roughness<Ra0.03, grinding<1um.


5. Standard mould part.


6. Plastic mould, precision design and processing connector mould for electronic products, but we can produce other plastic mould also.




Company Information


Founded in 2008, DongGuan QY hardware mold factory is a leading manufacturer of press die mold parts and plastic mold parts and different machine parts supplied globally to the metal-working and plastics industries. We specialize in making all kinds of mold parts according to the JIS, DIN and AISI etc standards. At the same time, we can make according to the standards of the following: MISUMI,DAYTON,HASCO,FIBRO, LANE,DME,MDL,RABOURDIN,MEUSBURGER and so on.

Our various brand names assure quality, innovative solutions and outstanding service. With our commitment to be the customer-focused supplier of choice, we have taken the leading role in creating and bringing new products to customers and helping them find solutions that improve their operations.

Since the date of the establishment, depending on the excellent quality products and good service, we have had an experienced development team, advanced technique, advanced processing equipment, and precise testing devices. We have formed an enterprise image of "ReliableQuality, Punctual Delivery, and Competitive Prices" among all the customers around the world. Our ultimate goals are to satisfy our customers through high standard quality products, and to motivate employees by the ultimate goal.

Choosing QY as a supplier means that our customers have a competitive advantage in delivering their products to market.

By providing standard press die mold components and plastic mold parts and made-to-order die parts complete to customer specifications, we deliver cost effective solutions to today's global customers.
